Overview

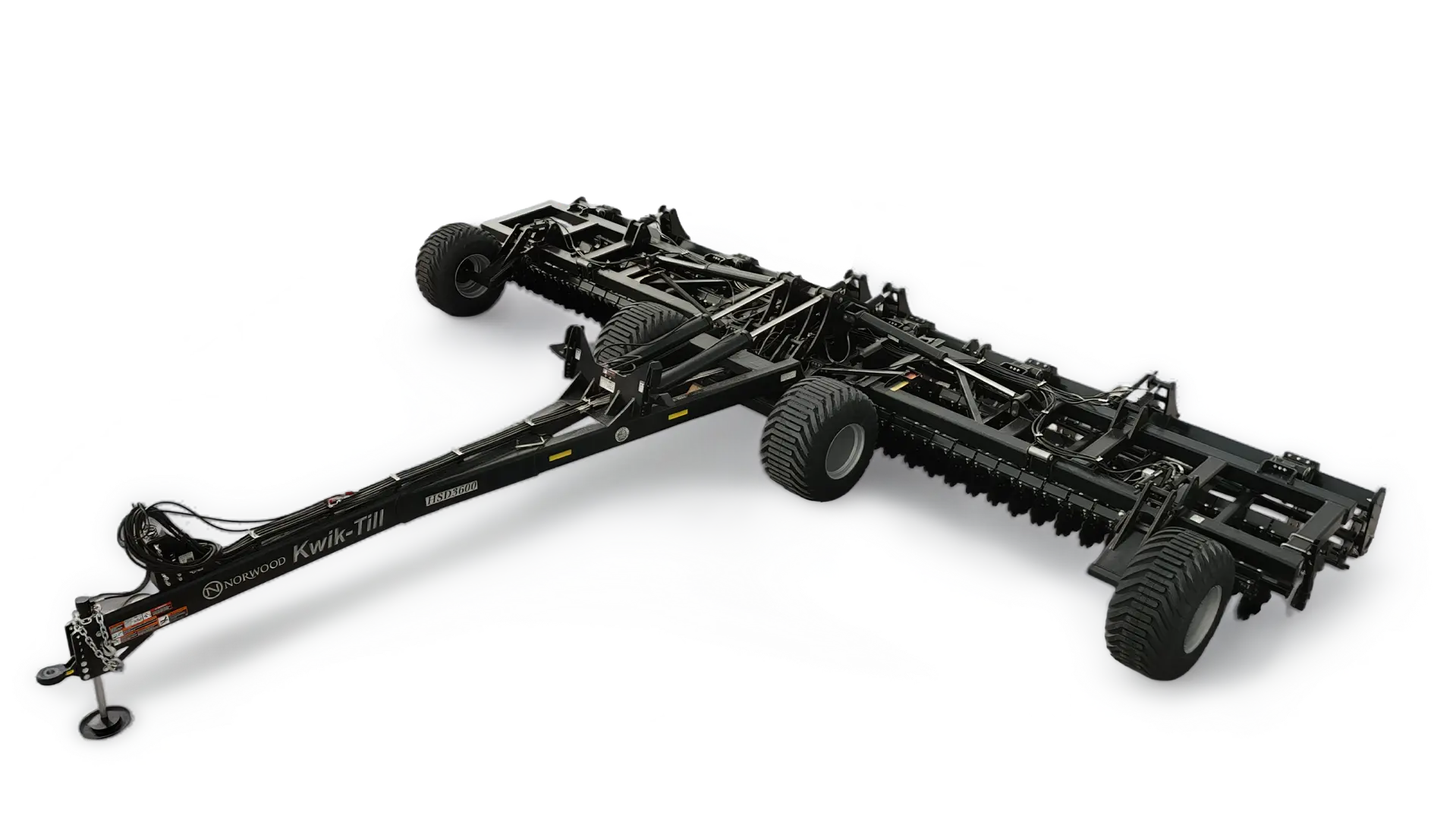

Kwik-Till

High Speed Disc Tillage


Purpose-built to balance

aggressive soil conditioning

with the smooth, consistent finish

that modern farming demands.



Engineered for high-speed performance.

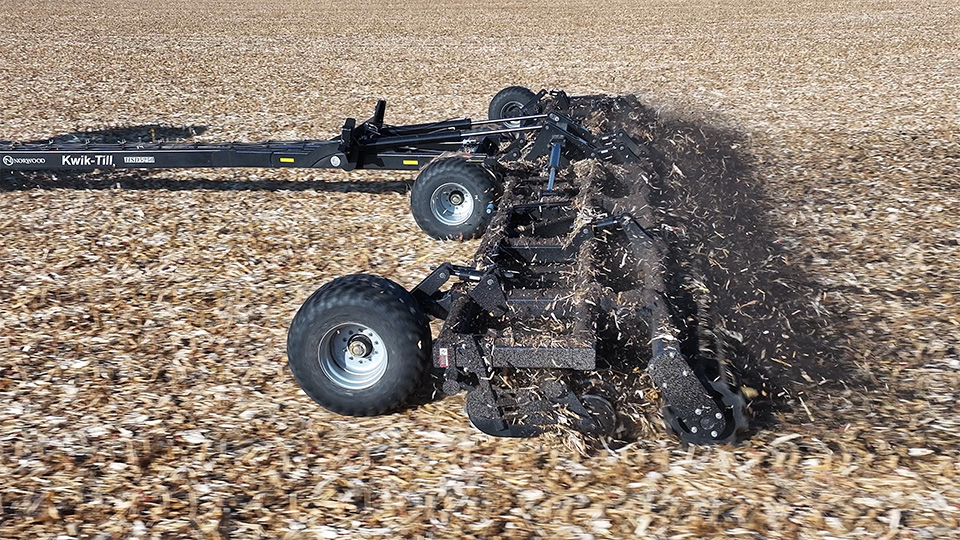

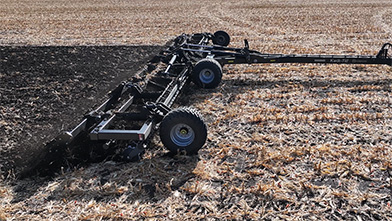

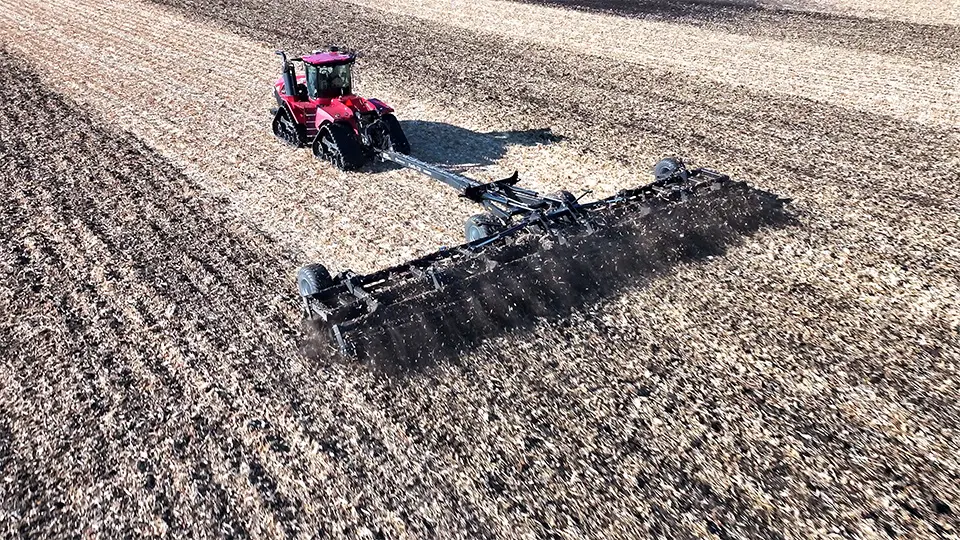

The Norwood Kwik-Till effectively sizes residue,

levels the soil profile, and creates a uniform seedbed

in a single pass—helping operators cover more acres

without sacrificing field finish.



Why Growers Choose Us ​

Discover Why

Growers Choose Kwik-Till






Superior Residue

Management


Heavy crop residue can delay soil warming, create planting challenges, and reduce seed-to-soil contact. The Kwik-Till's aggressive blade layout efficiently cuts, sizes, and incorporates residue, accelerating decomposition while leaving a more uniform field that's ready for planting.




Consistent Soil

Engagement


Uniform tillage starts with consistent blade depth. Independent blade mounting allows each blade to follow ground contours, maintaining even soil engagement across uneven terrain. The result is more consistent mixing, improved leveling, and a more uniform seedbed from one end of the field to the other.










Smooth Field Finish


A quality seedbed begins with a level finish. The Kwik-Till is designed to evenly distribute soil and residue while eliminating ridges and low spots, creating a smooth, consistent surface that promotes accurate planter performance and uniform crop emergence.

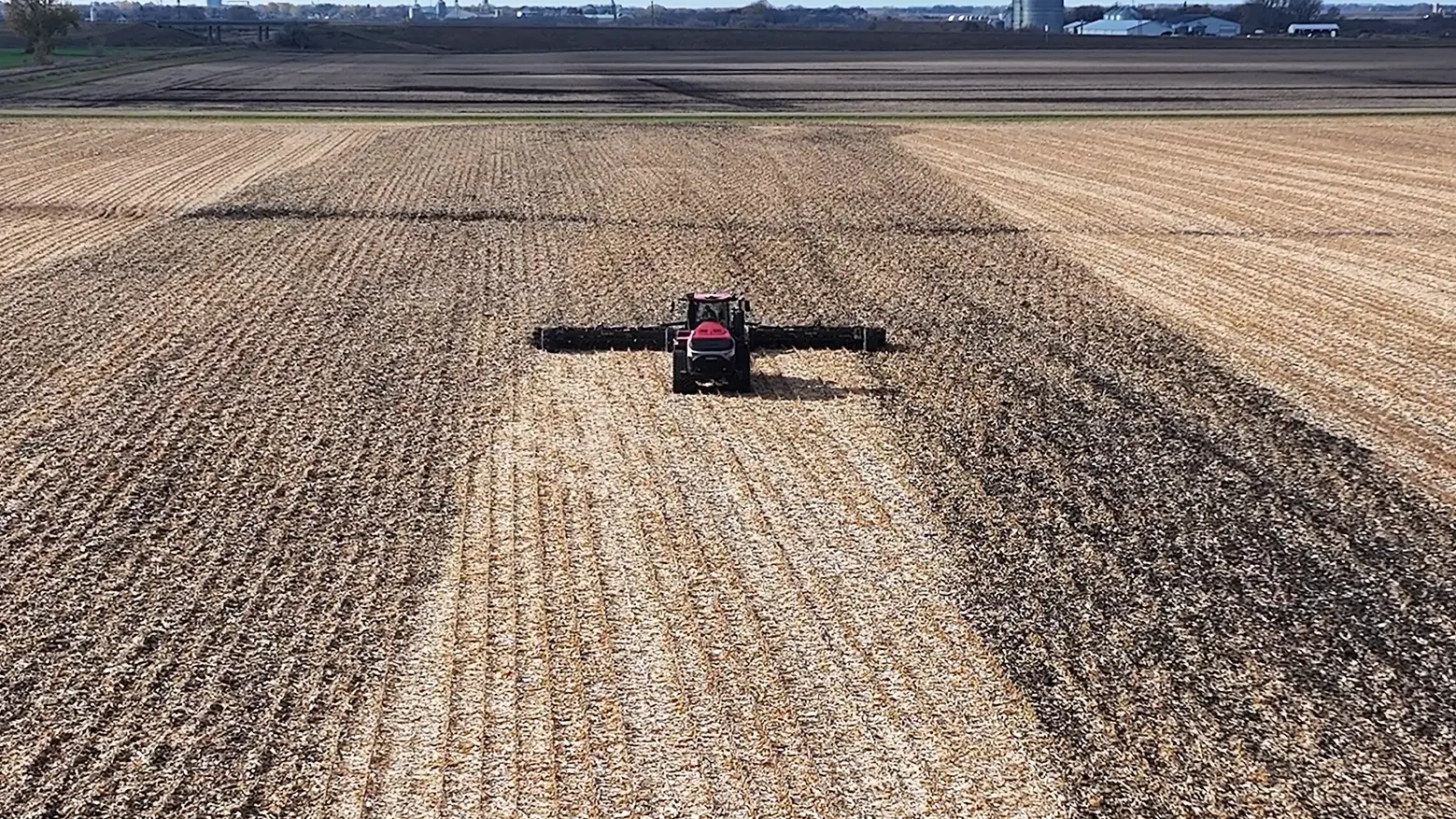

Engineered for

Productivity


A tillage tool is only as productive as the time it spends in the field. The Kwik-Till is built around a heavy-duty 7" × 7" frame, redesigned pivot assemblies, greaseless pivot pins, and robust hydraulic components engineered to withstand demanding field conditions. The result is dependable performance, reduced maintenance, and confidence season after season.

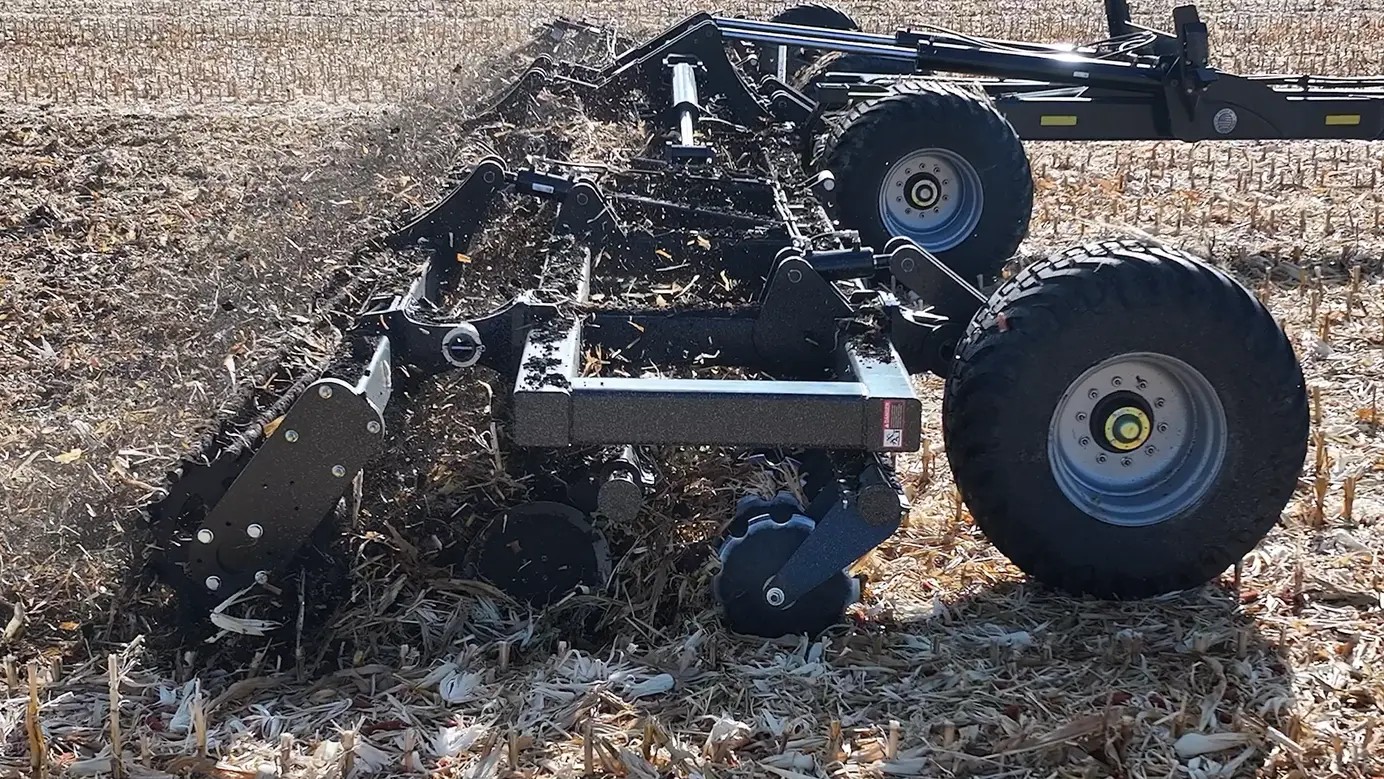

Simple, Efficient

Adjustments


Time spent adjusting equipment is time not spent in the field. Single-point depth control and straightforward adjustment points allow operators to quickly dial in performance for changing field conditions with minimal downtime.


Features

Features

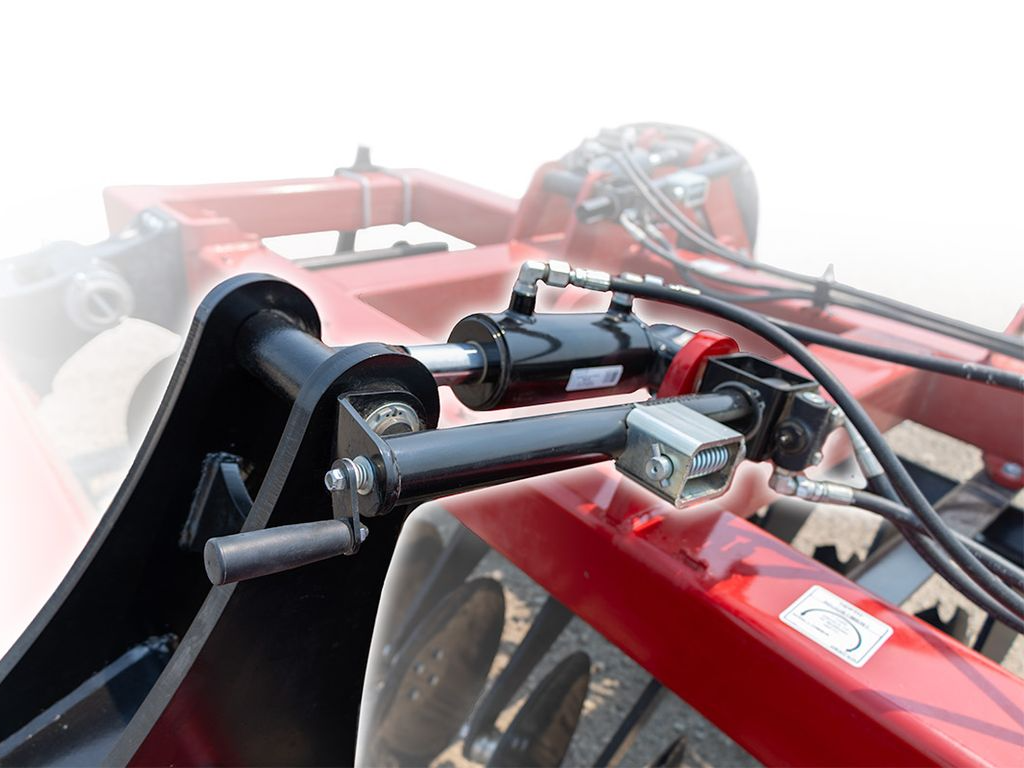

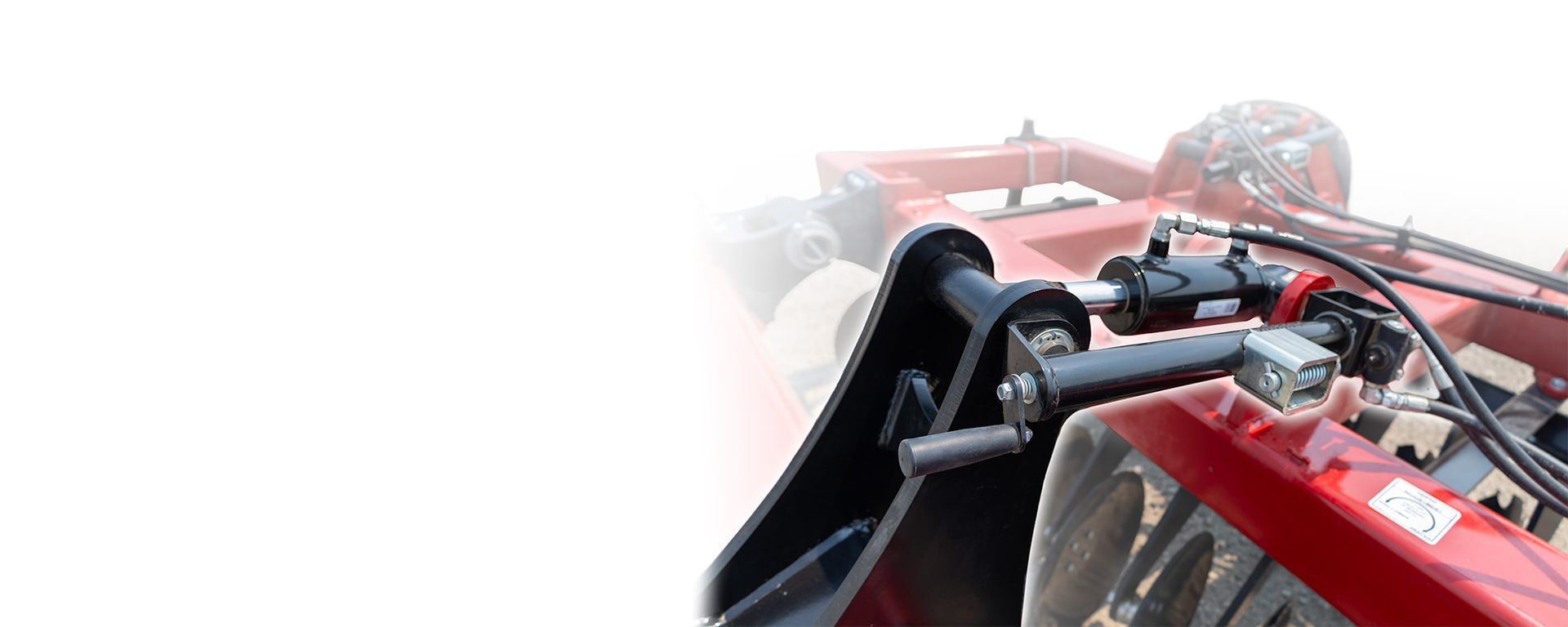

Single Point

Depth Control

Front and rear working depths are adjusted through dedicated centralized controls, eliminating multiple cylinder-stop adjustments. The result is faster setup, simpler operation, and more time in the field.

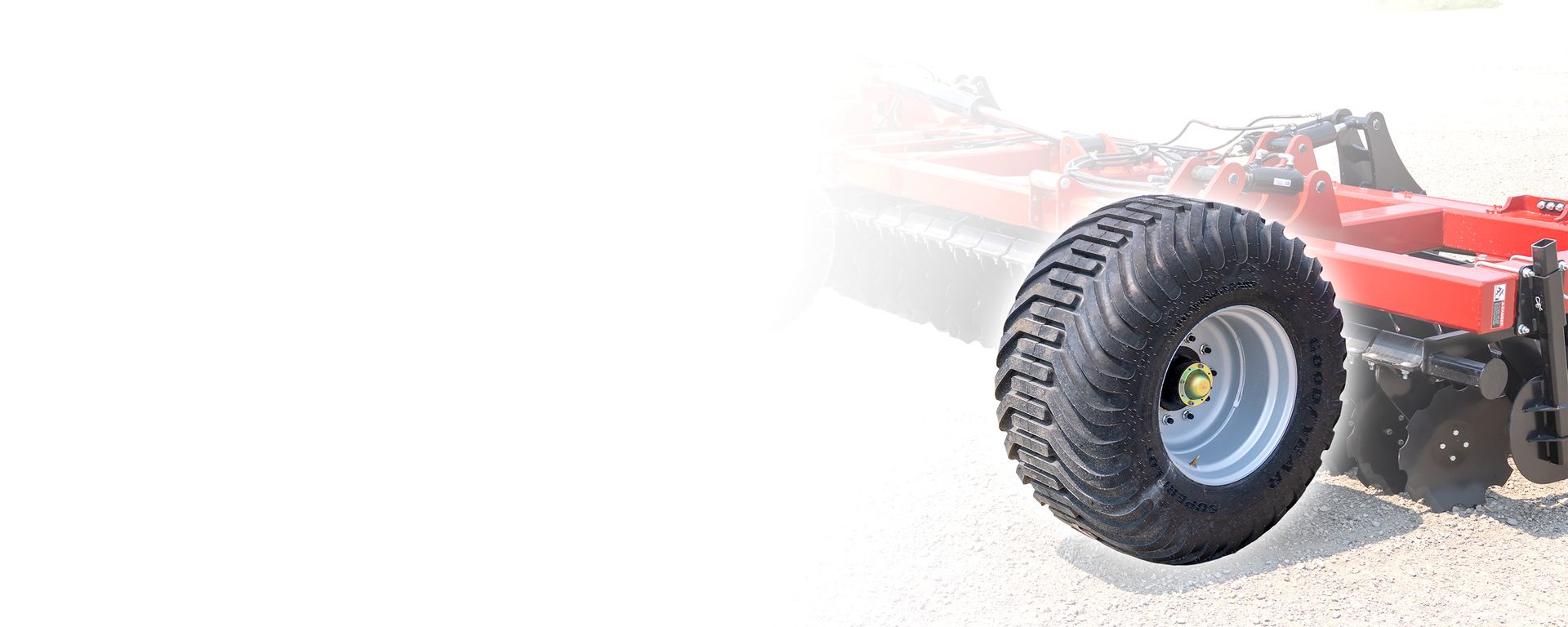

Designed to provide excellent support across varying field conditions, high-flotation tires help minimize soil compaction while delivering a stable, controlled ride during transport and field operation.

High-Flotation

Tires

Every pivot assembly is engineered for strength, not compromise. Featuring robust cast construction, an industry-leading 4-inch fully sealed pivot pin, and a greaseless design, the system is built to withstand demanding conditions while minimizing maintenance throughout the life of the machine.

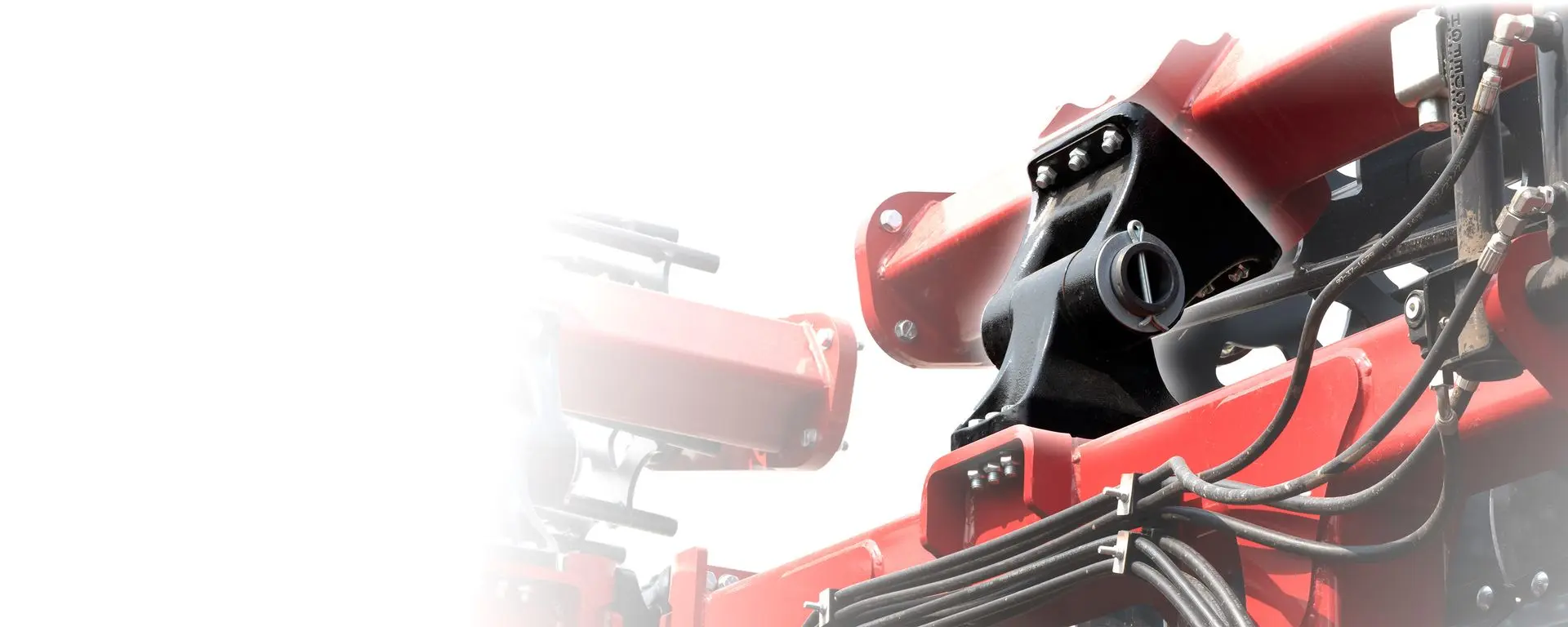

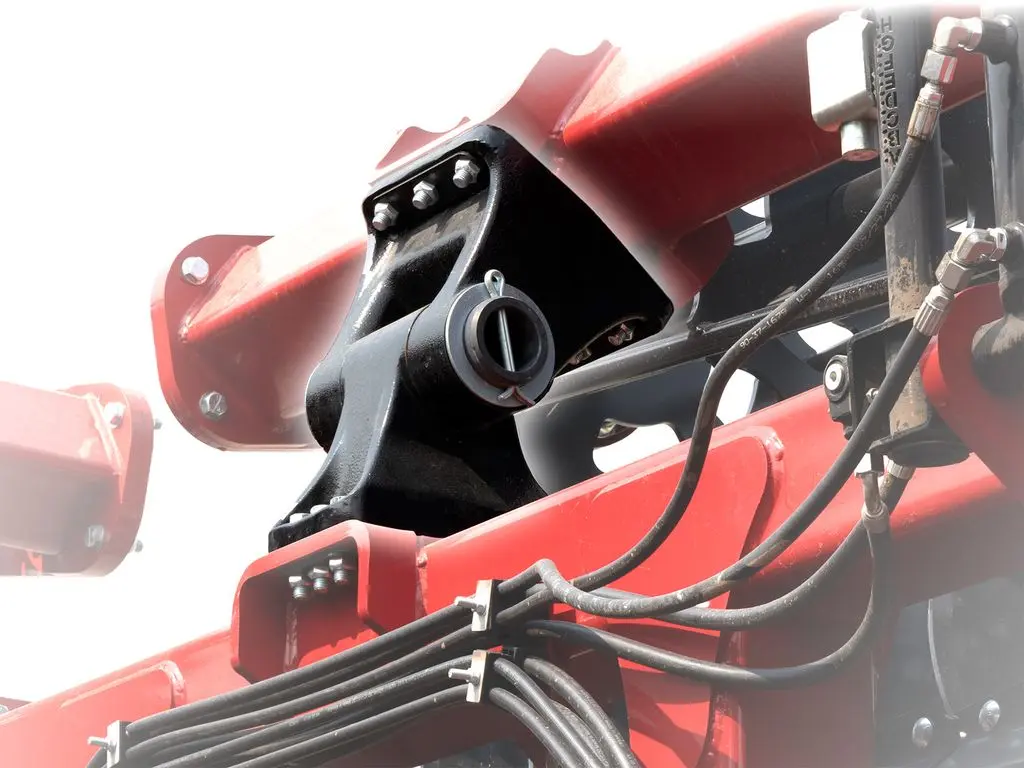

Greaseless

Pivot Assemblies

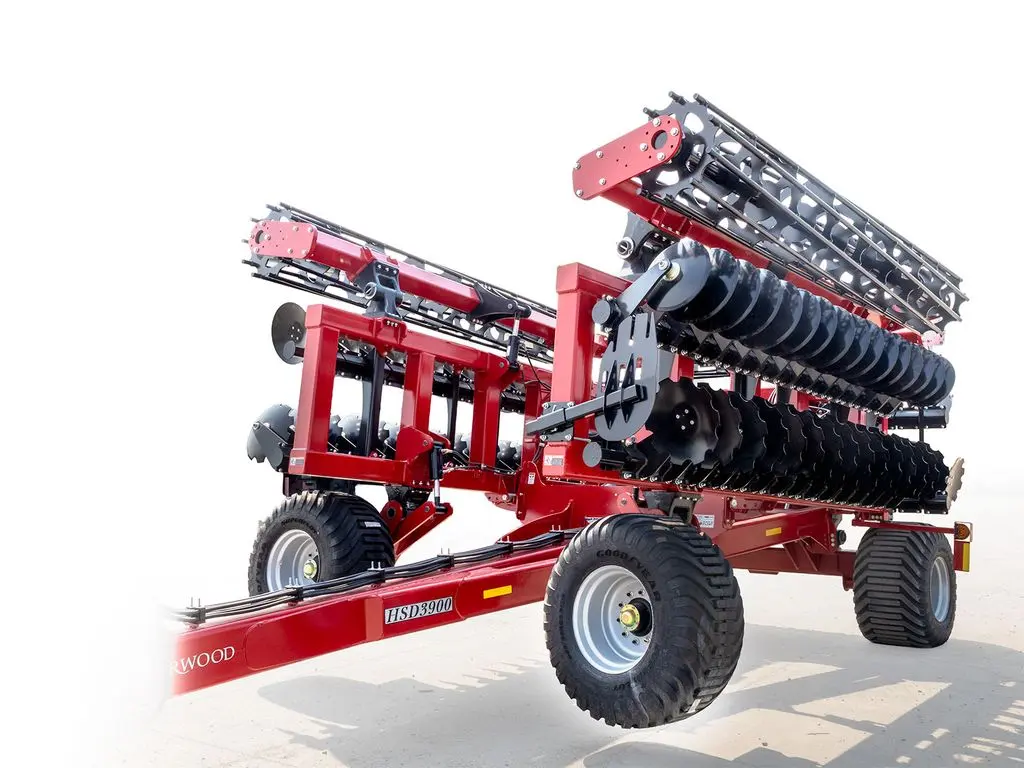

Designed for easier, safer road transport, the Kwik-Till's compact transport configuration improves maneuverability while enhancing stability between fields. Large in the field, compact on the road—it delivers confidence wherever the job takes you.

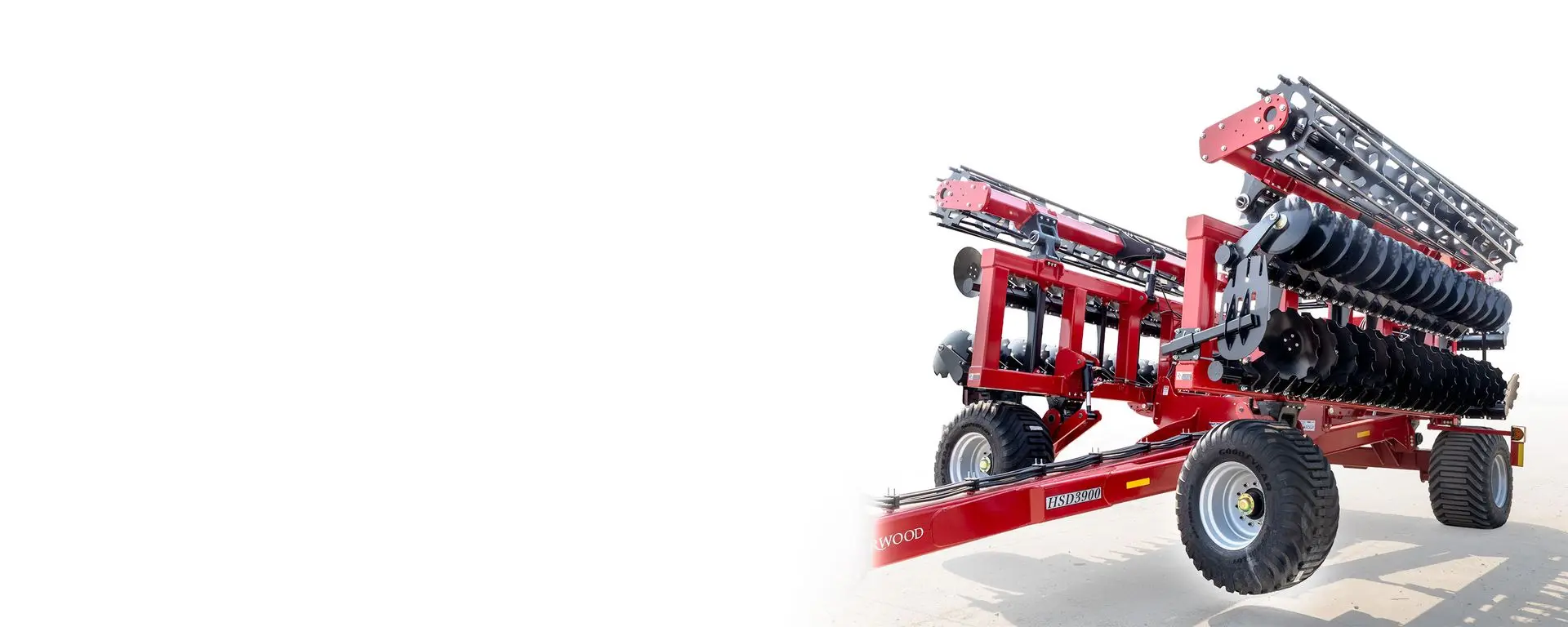

Narrow

Transport Width



Designed for quick, effortless hitching and unhitching, the hydraulic jack lifts vertically without requiring the machine to be repositioned. Fewer moving parts provide a simple, reliable design built for everyday use.

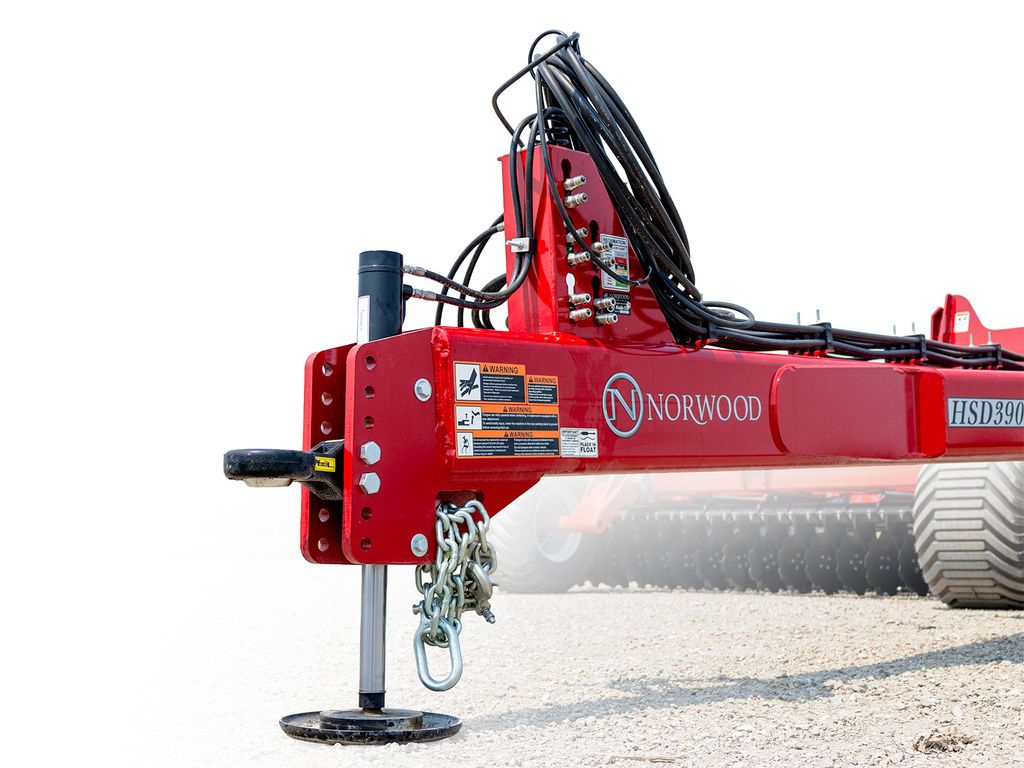

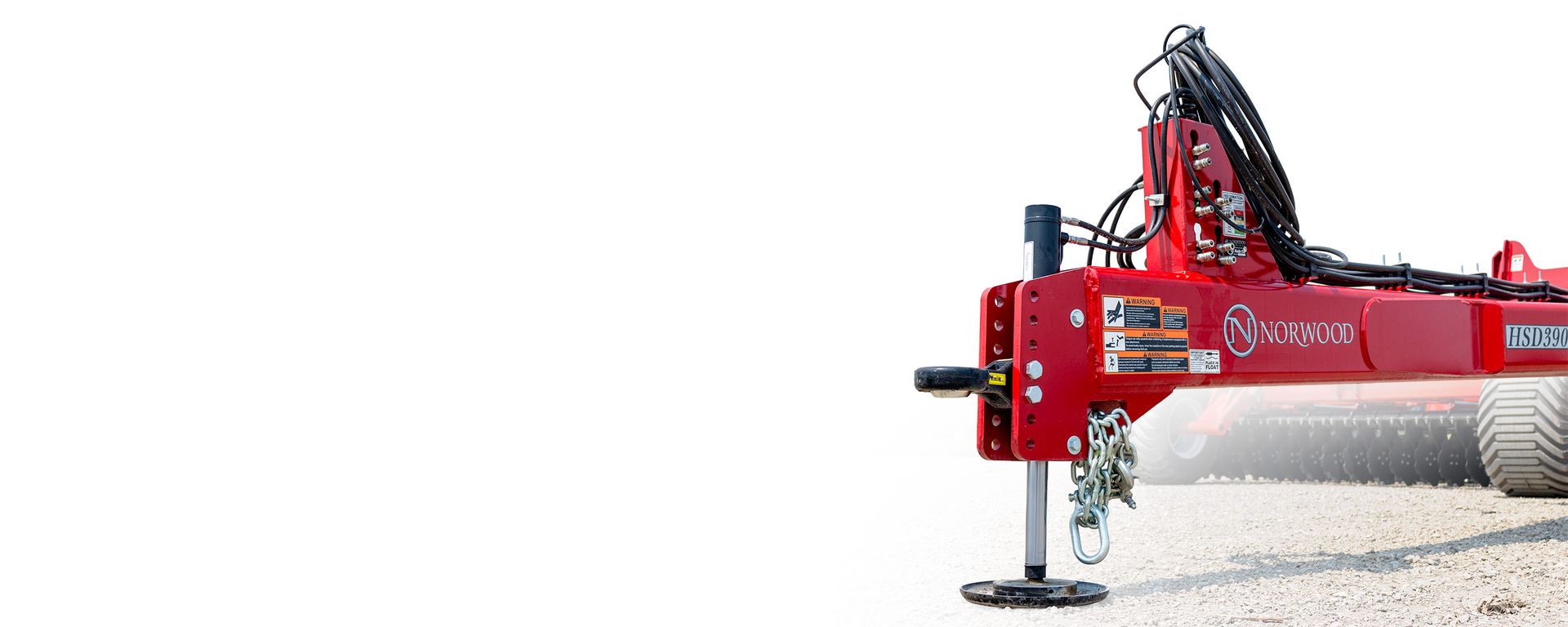

Hydraulic

Jack

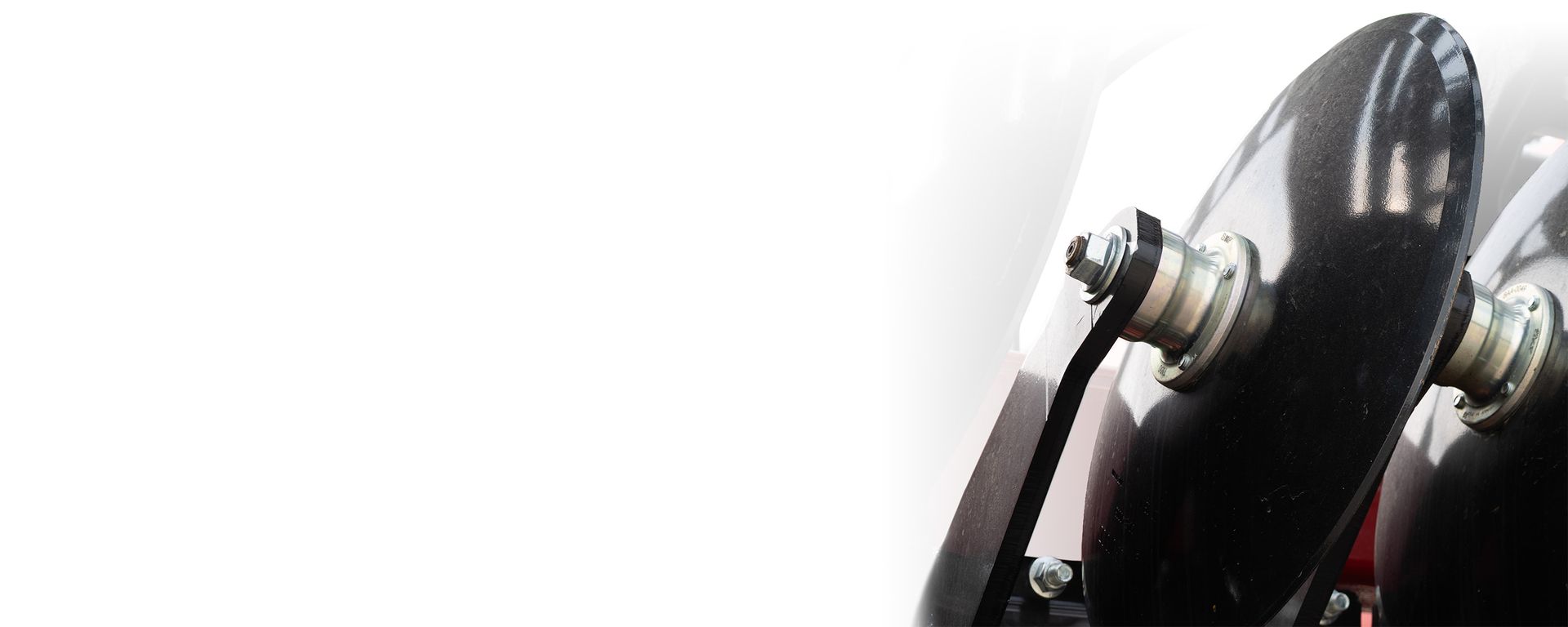

A fully sealed, maintenance-free hub protects critical bearings from contaminants while eliminating routine lubrication. Built for durability and long-term reliability, it delivers dependable performance in even the toughest field conditions.

Sealed

Disc Hubs

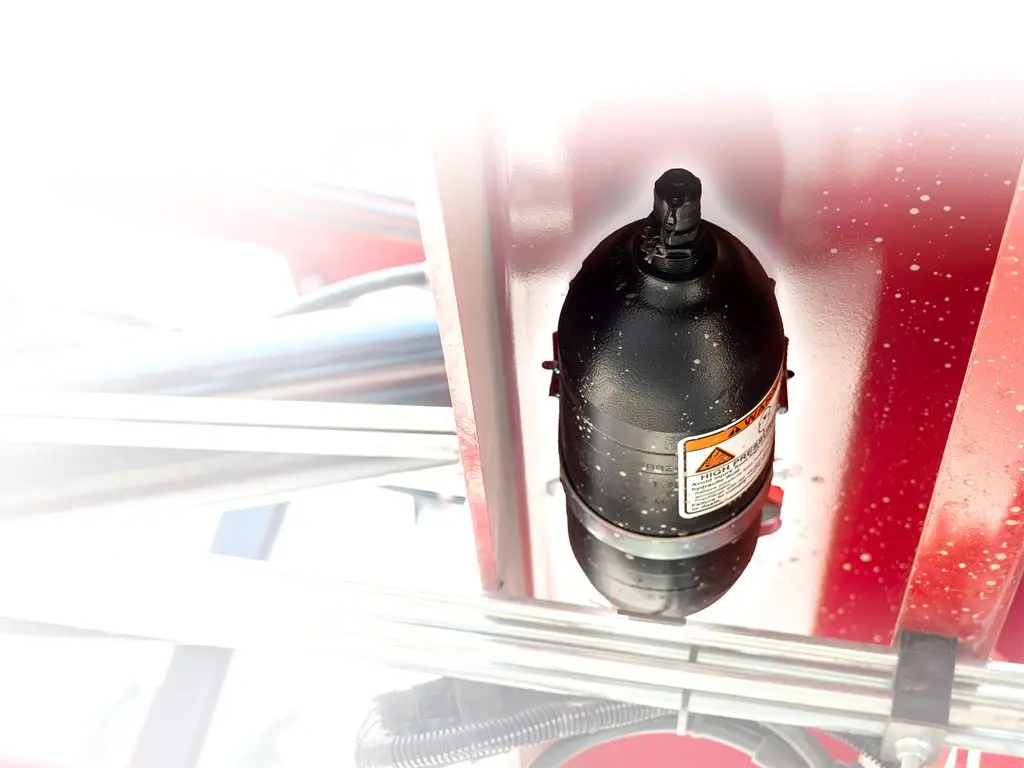

Working together with a crossover relief valve, the accumulator helps protect the wing cylinders from damaging pressure spikes and overextension. The result is greater system protection, improved reliability, and added peace of mind.



Accumulator

Protection System

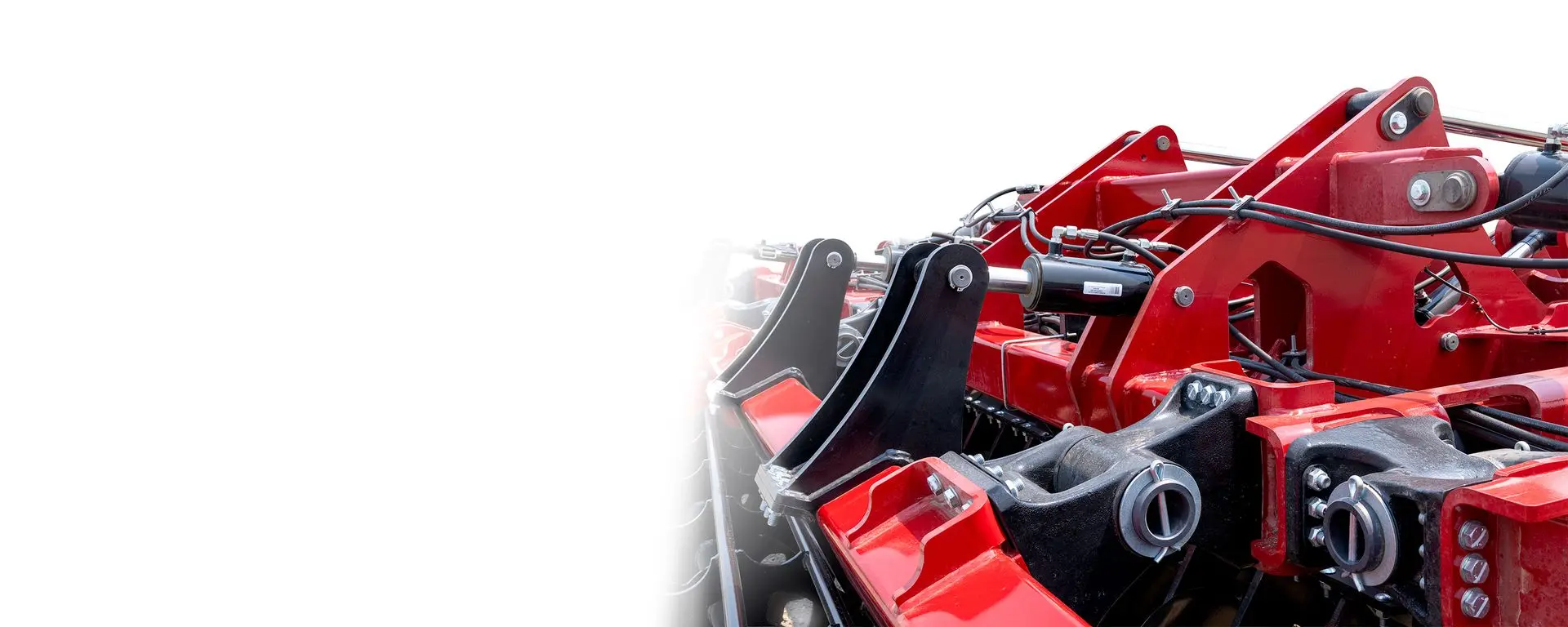

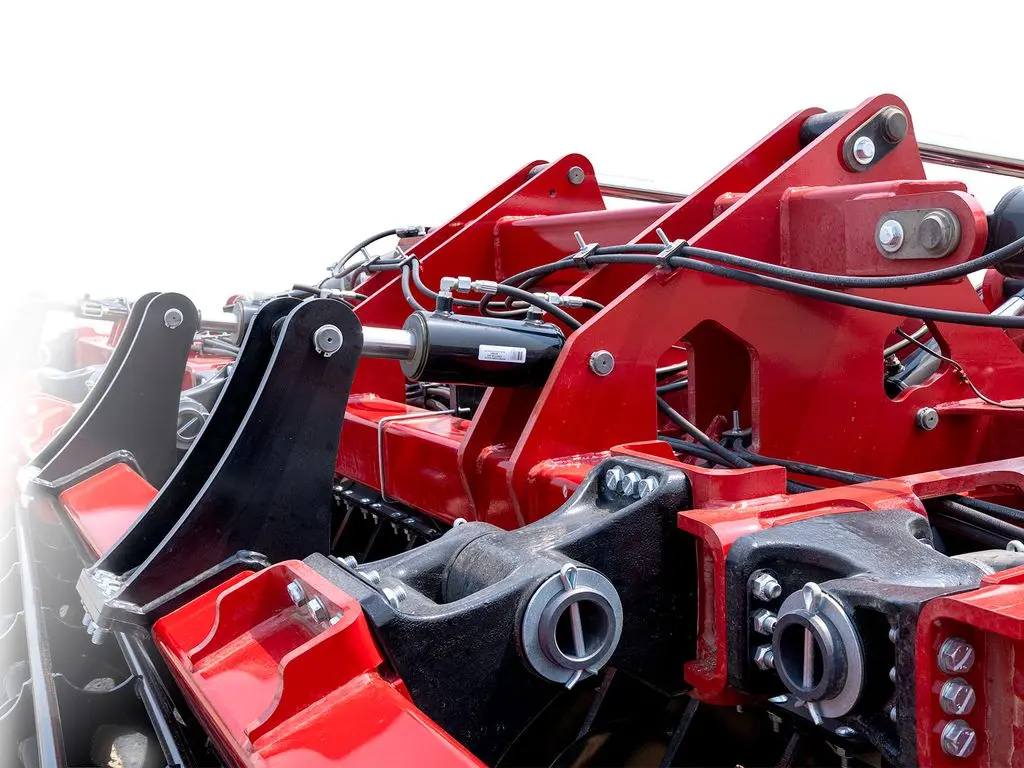

Built around one of the largest main frames in its class, the redesigned 7" × 7" frame delivers exceptional strength and rigidity for demanding field conditions. Extensively tested and backed by a 3-year limited frame warranty, it's engineered for years of dependable performance.



Heavy Duty

Frame

Every disc is mounted independently using a heavy-duty rubber torsion system that allows it to flex over rocks and obstacles while maintaining consistent working depth. The result is improved ground following, excellent residue flow, and dependable performance across varying field conditions.



Independent Disc

Suspension




Options

Options

Disc Blade

Options


Choose the blade configuration that best matches your field conditions, residue levels, and tillage objectives. Norwood offers smooth and notched disc blades, with the most popular configuration pairing notched front blades with smooth rear blades for balanced performance.

Smooth Disc Blades

Notched Disc Blades

Designed to produce a smooth, uniform field finish, smooth blades provide consistent soil engagement with reduced soil disturbance. They excel in seedbed preparation and finishing applications where maintaining a level surface is the priority.

Notched blades provide a more aggressive bite into the soil, improving residue cutting, penetration, and incorporation in challenging field conditions. They are ideal for managing heavy crop residue and tougher soils.

Best for:

  • Seedbed preparation
  • Finishing passes
  • Reduced soil disturbance
  • Uniform field finish

Best for:

  • Heavy residue management
  • Increased soil penetration
  • Aggressive residue sizing
  • Challenging field conditions

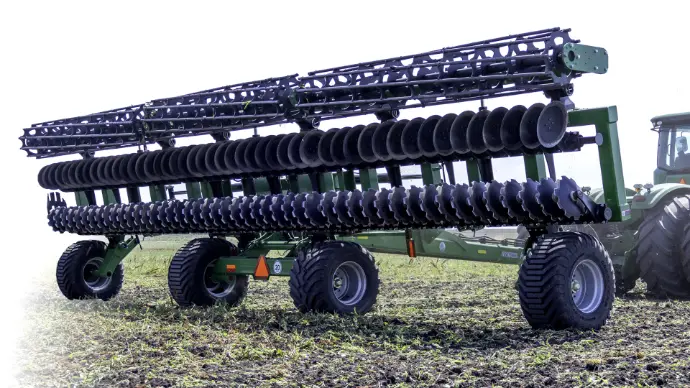

Recommended Configuration:

Notched Front • Smooth Rear

The most popular blade configuration combines the strengths of both designs. Notched front blades aggressively cut and size crop residue while improving penetration, while smooth rear blades leave a level, uniform field finish ready for the next operation. This balanced approach delivers excellent residue management without sacrificing seedbed quality.

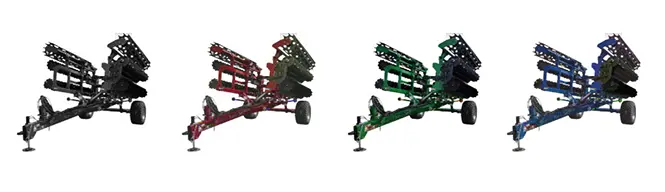

Color

Options


Black

Red

Green

Blue


Rear Roller

Options






Heavy-Duty

Cage Roller

Rubber

Roller

Spring Tine

Roller

Smooth, level seedbeds with balanced consolidation.

Maximum consolidation with exclusive hydraulic scraper control.

Aggressive finishing with lighter consolidation.

The Heavy-Duty Cage Roller is the preferred choice for most applications, breaking down clods while providing moderate soil consolidation. It leaves a level, uniform seedbed that promotes consistent emergence and helps reduce the potential for wind erosion.

The Rubber Roller firms the seedbed to improve moisture retention and reduce wind and water erosion. Norwood's exclusive hydraulic scraper system allows operators to adjust scraper pressure from the cab, maintaining a clean roller and consistent performance as field conditions change.

The Spring Tine Roller aggressively sizes remaining clods and evenly distributes residue while providing light soil consolidation. It's an excellent choice where maximum seedbed conditioning is desired without excessive firming.

Best For

• High consolidation

• Moisture conservation

• Variable soil conditions

Best For

• High consolidation

• Moisture conservation

• Variable soil conditions

Best For

• Clod sizing

• Residue distribution

• Light consolidation



Video

 Kwik-Till Video




Frequently Asked Questions

Frequently

 Asked Questions


The Kwik-Till is designed to excel in both spring and fall applications. In the fall, its weight, aggressive disc configuration, and working depths of up to 5 inches make it an excellent primary tillage tool for sizing residue, incorporating crop material, and promoting faster decomposition through improved soil contact. In the spring, operators can reduce the working depth to create a smooth, level, planter-ready seedbed while continuing to size residue and eliminate ridges left from previous operations.

The Kwik-Till is designed to operate at speeds between 10 and 14 MPH, with approximately 10 MPH providing an ideal balance of performance and efficiency. As operating speed increases, the discs become more aggressive, resulting in increased soil mixing, residue sizing, and field productivity.

The Heavy-Duty Cage Roller is the most popular choice and offers the best all-around performance. It provides moderate soil consolidation while leaving a smooth, level seedbed with enough surface texture to help reduce the risk of wind erosion.

The Rubber Roller provides the greatest level of soil consolidation, breaking down more clods while sealing the soil surface to improve moisture retention. It is an excellent option where moisture conservation or increased soil firming is desired.

The Spring Tine Roller provides lighter consolidation while aggressively breaking apart remaining clods and distributing residue, making it ideal for operations seeking additional seedbed conditioning .

The most popular configuration combines notched blades on the front gang with smooth blades on the rear gang. This setup delivers aggressive residue sizing and excellent soil penetration while allowing the rear gang to leave a smoother, more level seedbed. For most operations, it offers the best balance of residue management and field finish.

Horsepower requirements vary depending on working width, operating depth, soil conditions, and field speed. As a general guideline, operators should plan for approximately 12–15 horsepower per foot of working width, with higher horsepower requirements in heavier soils, deeper tillage, or high-residue conditions. Your Norwood dealer can help recommend the appropriate model for your tractor and operation.

The Kwik-Till is capable of operating at depths of up to 5 inches, although ideal working depth depends on soil type, residue conditions, and the desired tillage outcome. Most fall applications are performed between 3 and 4 inches to maximize residue incorporation, while spring seedbed preparation is typically completed between 2 and 3 inches for a smooth, planter-ready finish.

The Kwik-Till is a versatile high-speed tillage tool capable of handling a wide range of crop residues, including high-yield corn, soybeans, wheat, canola, and other small grains. Its aggressive disc action effectively sizes and incorporates residue while producing a consistent field finish across varying soil and residue conditions .

Routine maintenance is minimal. The Kwik-Till features maintenance-free sealed disc hubs and greaseless pivot assemblies, significantly reducing daily service requirements. The primary lubrication points are the transport wheel hubs, allowing operators to spend more time in the field and less time performing routine maintenance.

Every Kwik-Till is backed by Norwood's 1-Year Limited Parts and Labor Warranty, along with an exclusive 3-Year Limited Frame Warranty. The frame warranty covers the painted structural frame components of the machine, providing added confidence in the durability of Norwood's heavy-duty frame design. Wear components—including discs, disc arms, and disc gang mounts—are excluded from the extended frame warranty .

The Kwik-Till is designed to accomplish multiple objectives in a single pass, including residue sizing, soil mixing, leveling, and seedbed preparation. While results vary depending on field conditions and management goals, many operators use the Kwik-Till to reduce the number of tillage passes required, improving productivity while lowering fuel consumption and operating costs.


Spec Sheet



Overview

KWIK-TILL

High Speed Disc Tillage

Purpose-built to balance aggressive soil conditioning  with the smooth, consistent finish that modern farming demands.


Engineered for high-speed performance.

The Norwood Kwik-Till effectively sizes residue, levels the soil profile, and creates a uniform seedbed in a single pass—helping operators cover more acres  without sacrificing field finish.



Discover Why

Growers Choose

KWIK-TILL





Superior

Residue Management

Heavy crop residue can delay soil warming, create planting challenges, and reduce seed-to-soil contact. The Kwik-Till's aggressive blade layout efficiently cuts, sizes, and incorporates residue, accelerating decomposition while leaving a more uniform field that's ready for planting.






Consistent

Soil Engagement

Uniform tillage starts with consistent blade depth. Independent blade mounting allows each blade to follow ground contours, maintaining even soil engagement across uneven terrain. The result is more consistent mixing, improved leveling, and a more uniform seedbed from one end of the field to the other.












Smooth

Field Finish

A quality seedbed begins with a level finish. The Kwik-Till is designed to evenly distribute soil and residue while eliminating ridges and low spots, creating a smooth, consistent surface that promotes accurate planter performance and uniform crop emergence.




Engineered for

Productivity

A tillage tool is only as productive as the time it spends in the field. The Kwik-Till is built around a heavy-duty 7" × 7" frame, redesigned pivot assemblies, greaseless pivot pins, and robust hydraulic components engineered to withstand demanding field conditions. The result is dependable performance, reduced maintenance, and confidence season after season.


Simple, Efficient

Adjustments

Time spent adjusting equipment is time not spent in the field. Single-point depth control and straightforward adjustment points allow operators to quickly dial in performance for changing field conditions with minimal downtime.

Video

 Kwik-Till Video



Features

Features




Single Point

Depth Control

Front and rear working depths are adjusted through dedicated centralized controls, eliminating multiple cylinder-stop adjustments. The result is faster setup, simpler operation, and more time in the field.

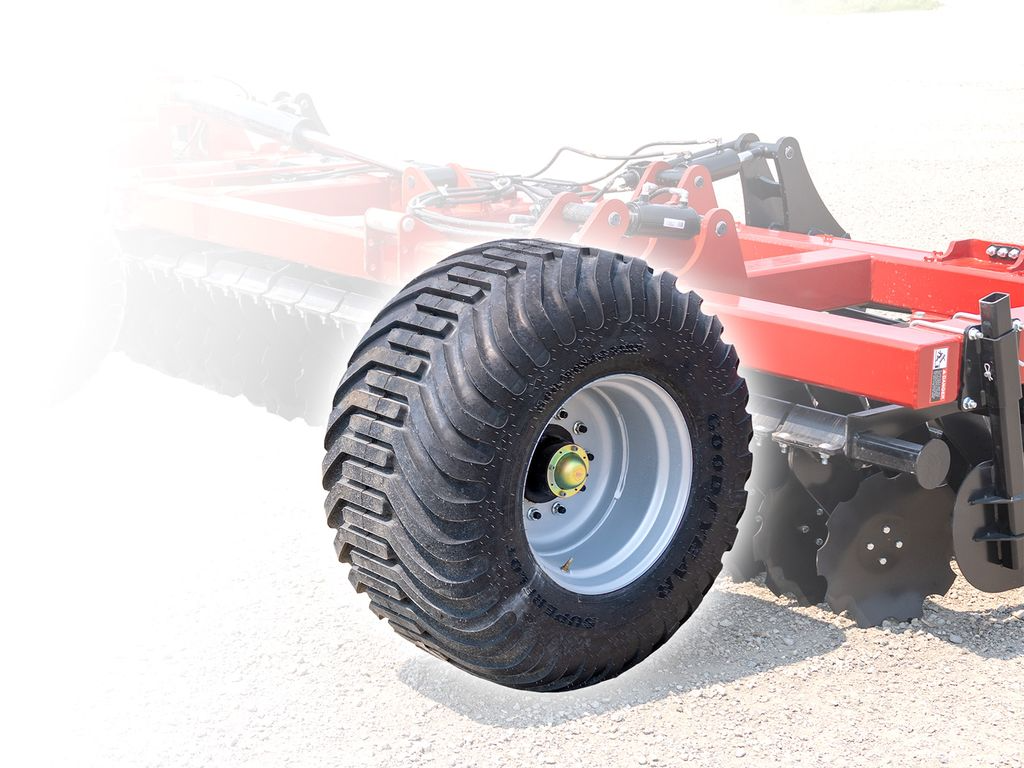

Designed to provide excellent support across varying field conditions, high-flotation tires help minimize soil compaction while delivering a stable, controlled ride during transport and field operation.




High-Flotation

Tires

Every pivot assembly is engineered for strength, not compromise. Featuring robust cast construction, an industry-leading 4-inch fully sealed pivot pin, and a greaseless design, the system is built to withstand demanding conditions while minimizing maintenance throughout the life of the machine.




Greaseless

Pivot Assemblies

Designed for easier, safer road transport, the Kwik-Till's compact transport configuration improves maneuverability while enhancing stability between fields. Large in the field, compact on the road—it delivers confidence wherever the job takes you.




Narrow

Transport Width

Designed for quick, effortless hitching and unhitching, the hydraulic jack lifts vertically without requiring the machine to be repositioned. Fewer moving parts provide a simple, reliable design built for everyday use.




Hydraulic

Jack

A fully sealed, maintenance-free hub protects critical bearings from contaminants while eliminating routine lubrication. Built for durability and long-term reliability, it delivers dependable performance in even the toughest field conditions.




Sealed

Disc Hubs

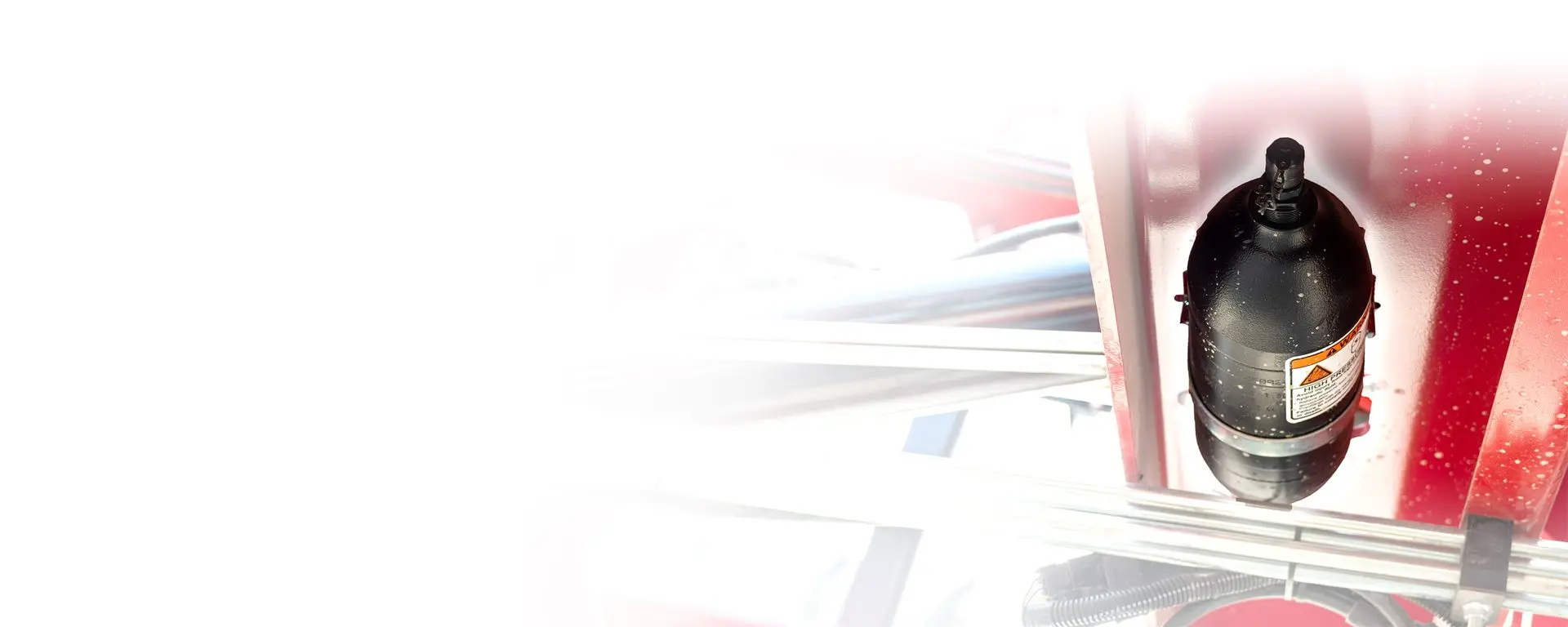

Working together with a crossover relief valve, the accumulator helps protect the wing cylinders from damaging pressure spikes and overextension. The result is greater system protection, improved reliability, and added peace of mind.




Accumulator

Protection System

Built around one of the largest main frames in its class, the redesigned 7" × 7" frame delivers exceptional strength and rigidity for demanding field conditions. Extensively tested and backed by a 3-year limited frame warranty, it's engineered for years of dependable performance.




Heavy Duty

Frame

Every disc is mounted independently using a heavy-duty rubber torsion system​ that allows it to flex over rocks and obstacles while maintaining consistent working depth. The result is improved ground following, excellent residue flow, and dependable performance across varying field conditions.






Independent Disc

Suspension



Options

Options

Disc Blade

Options


Choose the blade configuration that best matches your field conditions, residue levels, and tillage objectives. Norwood offers smooth and notched disc blades, with the most popular configuration pairing notched front blades with smooth rear blades for balanced performance.

Smooth Disc Blades

Notched Disc Blades

Designed to produce a smooth, uniform field finish, smooth blades provide consistent soil engagement with reduced soil disturbance. They excel in seedbed preparation and finishing applications where maintaining a level surface is the priority.

Notched blades provide a more aggressive bite into the soil, improving residue cutting, penetration, and incorporation in challenging field conditions. They are ideal for managing heavy crop residue and tougher soils.

Best for:

  • Seedbed preparation
  • Finishing passes
  • Reduced soil disturbance
  • Uniform field finish

Best for:

  • Heavy residue management
  • Increased soil penetration
  • Aggressive residue sizing
  • Challenging field conditions

Recommended Configuration:

Notched Front • Smooth Rear

The most popular blade configuration combines the strengths of both designs. Notched front blades aggressively cut and size crop residue while improving penetration, while smooth rear blades leave a level, uniform field finish ready for the next operation. This balanced approach delivers excellent residue management without sacrificing seedbed quality.

Color

Options


Black

Red

Green

Blue


Rear Roller

Options



Heavy-Duty

Cage Roller

Rubber

Roller

Spring Tine

Roller

Smooth, level seedbeds with balanced consolidation.

Maximum consolidation with exclusive hydraulic scraper control.

Aggressive finishing with lighter consolidation.

The Heavy-Duty Cage Roller is the preferred choice for most applications, breaking down clods while providing moderate soil consolidation. It leaves a level, uniform seedbed that promotes consistent emergence and helps reduce the potential for wind erosion.

The Rubber Roller firms the seedbed to improve moisture retention and reduce wind and water erosion. Norwood's exclusive hydraulic scraper system allows operators to adjust scraper pressure from the cab, maintaining a clean roller and consistent performance as field conditions change.

The Spring Tine Roller aggressively sizes remaining clods and evenly distributes residue while providing light soil consolidation. It's an excellent choice where maximum seedbed conditioning is desired without excessive firming.

Best For

• High consolidation

• Moisture conservation

• Variable soil conditions

Best For

• High consolidation

• Moisture conservation

• Variable soil conditions

Best For

• Clod sizing

• Residue distribution

• Light consolidation




Frequently Asked Questions

Frequently

Asked Questions


The Kwik-Till is designed to excel in both spring and fall applications. In the fall, its weight, aggressive disc configuration, and working depths of up to 5 inches make it an excellent primary tillage tool for sizing residue, incorporating crop material, and promoting faster decomposition through improved soil contact. In the spring, operators can reduce the working depth to create a smooth, level, planter-ready seedbed while continuing to size residue and eliminate ridges left from previous operations.

The Kwik-Till is designed to operate at speeds between 10 and 14 MPH, with approximately 10 MPH providing an ideal balance of performance and efficiency. As operating speed increases, the discs become more aggressive, resulting in increased soil mixing, residue sizing, and field productivity.

The Heavy-Duty Cage Roller is the most popular choice and offers the best all-around performance. It provides moderate soil consolidation while leaving a smooth, level seedbed with enough surface texture to help reduce the risk of wind erosion.

The Rubber Roller provides the greatest level of soil consolidation, breaking down more clods while sealing the soil surface to improve moisture retention. It is an excellent option where moisture conservation or increased soil firming is desired.

The Spring Tine Roller provides lighter consolidation while aggressively breaking apart remaining clods and distributing residue, making it ideal for operations seeking additional seedbed conditioning .

The most popular configuration combines notched blades on the front gang with smooth blades on the rear gang. This setup delivers aggressive residue sizing and excellent soil penetration while allowing the rear gang to leave a smoother, more level seedbed. For most operations, it offers the best balance of residue management and field finish.

Horsepower requirements vary depending on working width, operating depth, soil conditions, and field speed. As a general guideline, operators should plan for approximately 12–15 horsepower per foot of working width, with higher horsepower requirements in heavier soils, deeper tillage, or high-residue conditions. Your Norwood dealer can help recommend the appropriate model for your tractor and operation.

The Kwik-Till is capable of operating at depths of up to 5 inches, although ideal working depth depends on soil type, residue conditions, and the desired tillage outcome. Most fall applications are performed between 3 and 4 inches to maximize residue incorporation, while spring seedbed preparation is typically completed between 2 and 3 inches for a smooth, planter-ready finish.

The Kwik-Till is a versatile high-speed tillage tool capable of handling a wide range of crop residues, including high-yield corn, soybeans, wheat, canola, and other small grains. Its aggressive disc action effectively sizes and incorporates residue while producing a consistent field finish across varying soil and residue conditions .

Routine maintenance is minimal. The Kwik-Till features maintenance-free sealed disc hubs and greaseless pivot assemblies, significantly reducing daily service requirements. The primary lubrication points are the transport wheel hubs, allowing operators to spend more time in the field and less time performing routine maintenance.

Every Kwik-Till is backed by Norwood's 1-Year Limited Parts and Labor Warranty, along with an exclusive 3-Year Limited Frame Warranty. The frame warranty covers the painted structural frame components of the machine, providing added confidence in the durability of Norwood's heavy-duty frame design. Wear components—including discs, disc arms, and disc gang mounts—are excluded from the extended frame warranty .

The Kwik-Till is designed to accomplish multiple objectives in a single pass, including residue sizing, soil mixing, leveling, and seedbed preparation. While results vary depending on field conditions and management goals, many operators use the Kwik-Till to reduce the number of tillage passes required, improving productivity while lowering fuel consumption and operating costs.


Spec Sheet



Kwik-Till Equipment Specifications

Kwik-Till Equipment

Spec Numbers

Tri-Fold Specs

26' – 54'

Model Type Transport
Height (A)
Transport
Length (B)
Transport
Width (C)
Tongue
Weight (lbs)
Unfolded
Length (D)
Unfolded
Width (E)
Weight
Cage (lbs)
Weight
Spring (lbs)
Weight
Rubber (lbs)
Tire Size
(Center)
Tire Size
(Wing, opt.)
# of Discs
HSD2600Nar13' - 6"24' - 10"12' - 6"5,98029' - 11"27' - 3"23,96024,54927,530600/50R22.5600/50R22.562
HSD2900Nar13' - 6"24' - 10"12' - 6"7,04029' - 11"30' - 6"26,60027,18929,279600/50R22.5600/50R22.570
HSD3250Nar13' - 6"28' - 0"12' - 6"8,18033' - 3"33' - 10"28,86029,57331,490600/50R22.5600/50R22.578
HSD3600Nar13' - 6"28' - 0"12' - 6"9,05033' - 3"37' - 2"30,24030,95133,310710/40R22.5600/50R22.586
HSD3600Std13' - 6"28' - 0"15' - 11"8,56033' - 3"37' - 2"31,14031,91434,496710/40R22.5600/50R22.586
HSD3900Nar13' - 6"31' - 2"12' - 6"10,77036' - 6"40' - 6"31,58032,41335,296710/40R22.5600/50R22.594
HSD3900Std13' - 6"28' - 0"15' - 11"9,76033' - 3"40' - 6"32,40033,17236,139710/40R22.5600/50R22.594
HSD4250Std13' - 6"31' - 2"15' - 11"10,06036' - 6"43' - 10"34,44035,33438,205800/40R22.5600/50R22.5102
HSD4600Std13' - 6"31' - 2"15' - 11"11,66036' - 6"47' - 2"35,37036,26440,017800/40R22.5600/50R22.5110
HSD5100Std12' - 11"35' - 0"17' - 10"12,00038' - 8"52' - 2"43,00045,00050,500800/40R22.6600/50R22.6122
HSD5400Std13' - 0"35' - 0"17' - 10"13,00038' - 8"55' - 6"45,50048,00053,500800/40R22.7600/50R22.7130
Tri-Fold dimension diagram showing transport height (A), length (B), width (C), unfolded length (D) and width (E)
Dimension Reference
Tri-Fold transport folding process, field position to transport position
Tri-Fold Transport Process

* Rubber Roller option adds 7" to transport height.   ** All specifications are subject to change without notification.
